What Sets Us Apart from Our Competition?

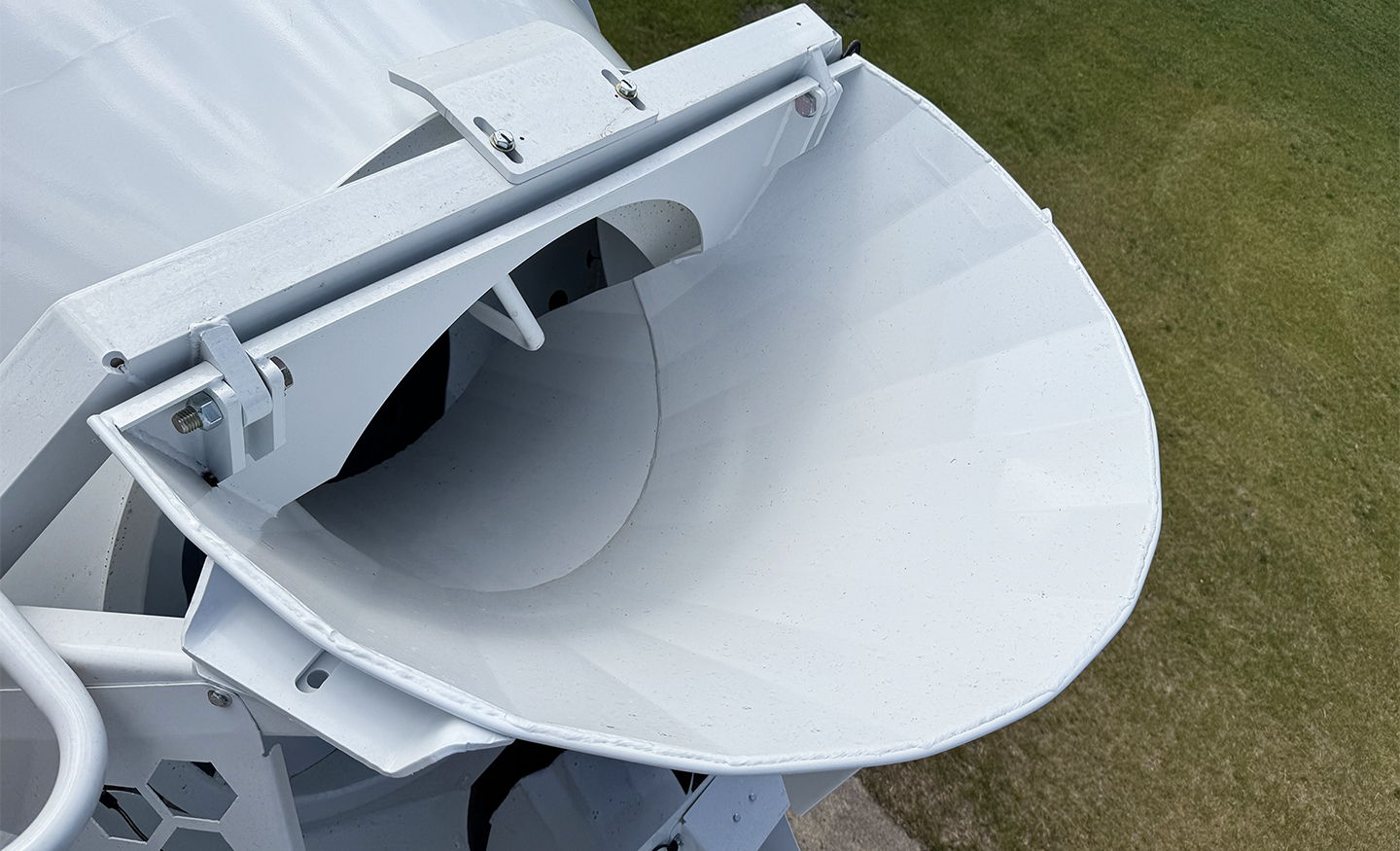

The top rear of an INTEGRALdx concrete redi-mix truck, centered on the charge hopper.

Fast Charging

Our standard 45" x 28" fast charging tilt-up hopper maximizes the mixer's ability to load from the fastest plants when running at 18 RPM while the double helix fins pull product to the mixing cylinder of the drum.

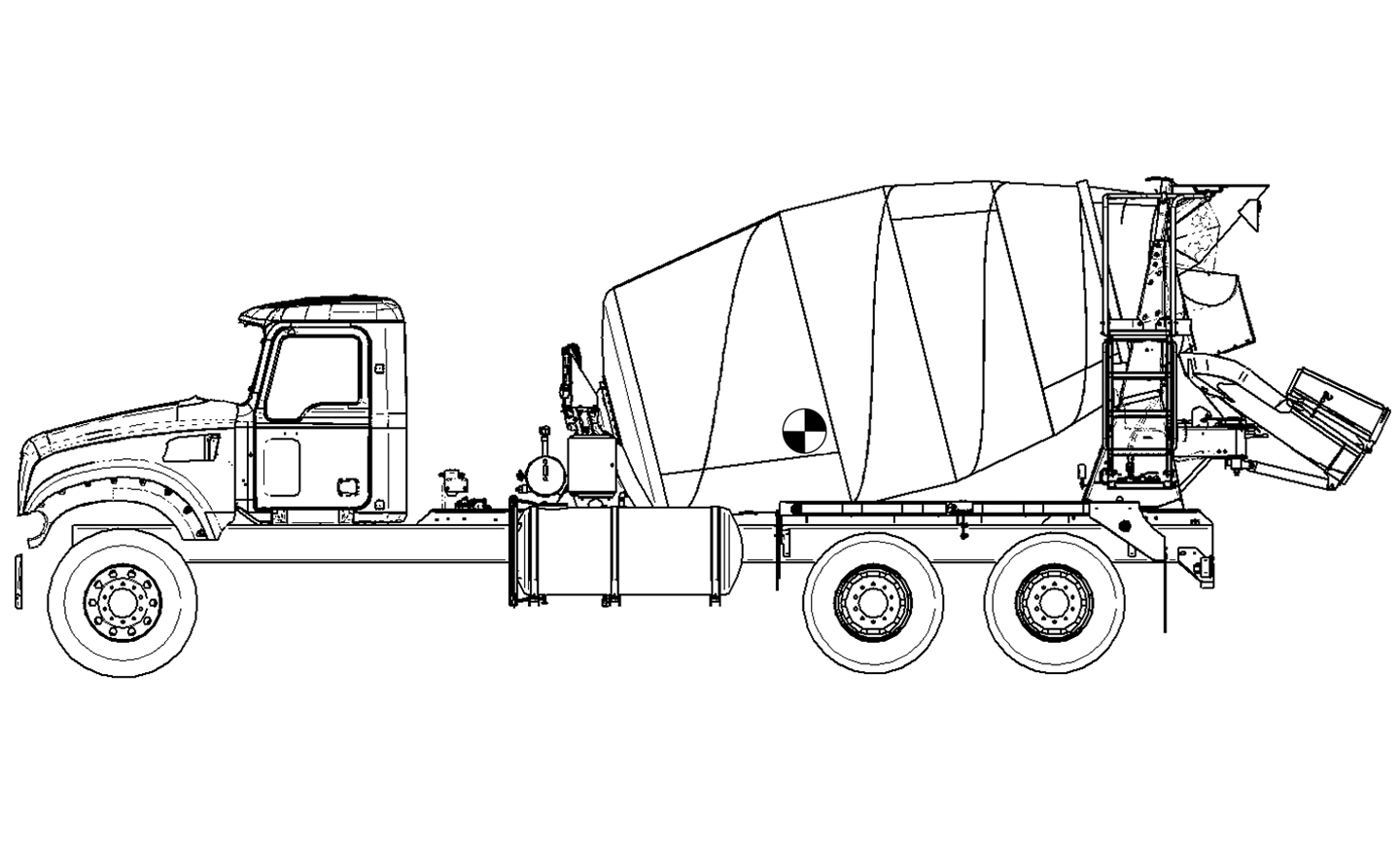

A black and white engineering sketch of an INTEGRALdx concrete redi-mix truck from the side. There is a center of gravity symbol located on the picture.

Safer Travels

Loaded transport is safer thanks to our mixer's lower center of gravity. Less chassis roll. Longer suspension life. Better stability. Lower center of gravity is achieved through our small diameter drum head and longer cone and cylinder sections allowing us to place the mixer lower in the chassis.

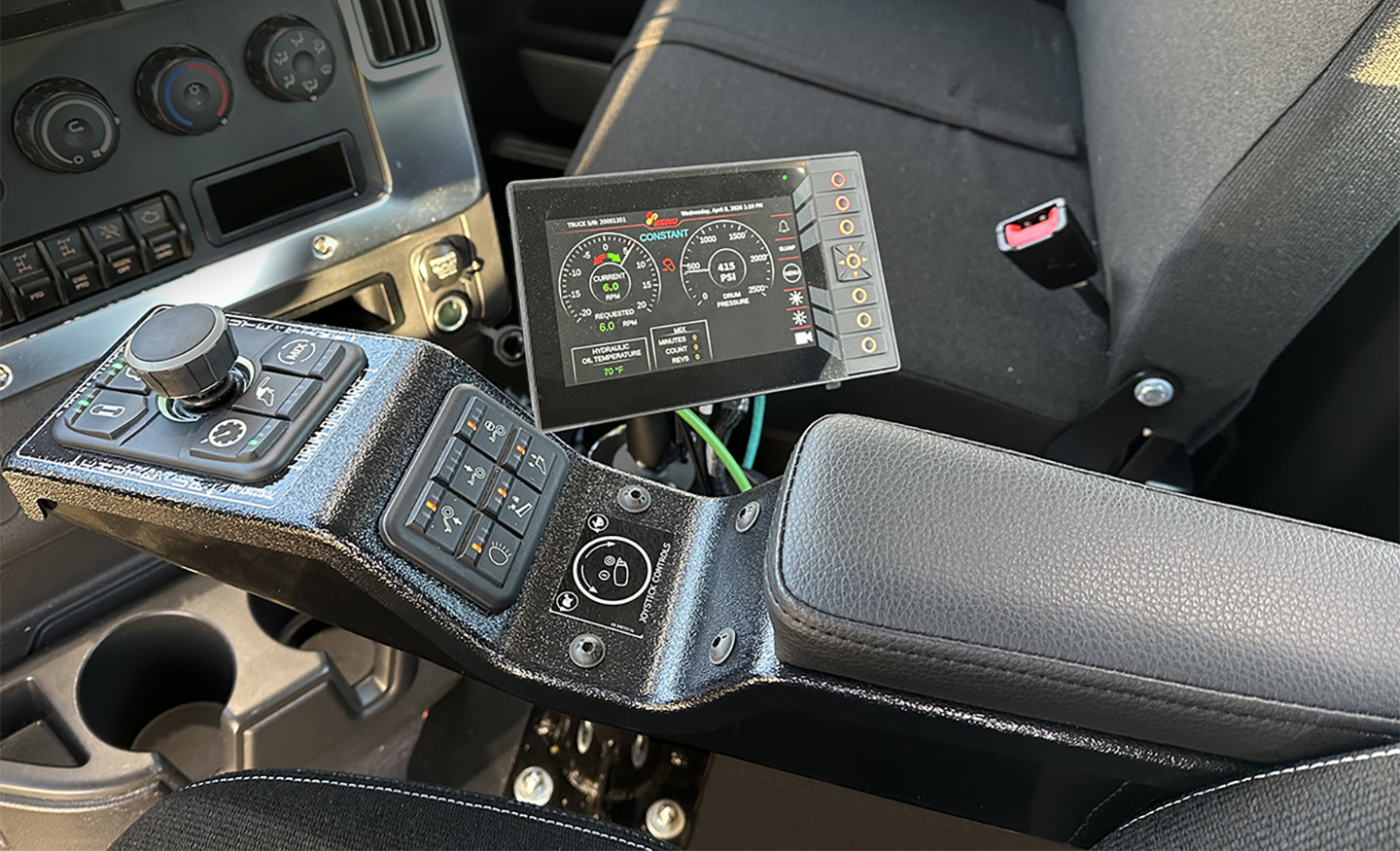

Auto-Mix

Set it and forget it! Preprogram to mix your desired number of revolutions based on the mix.

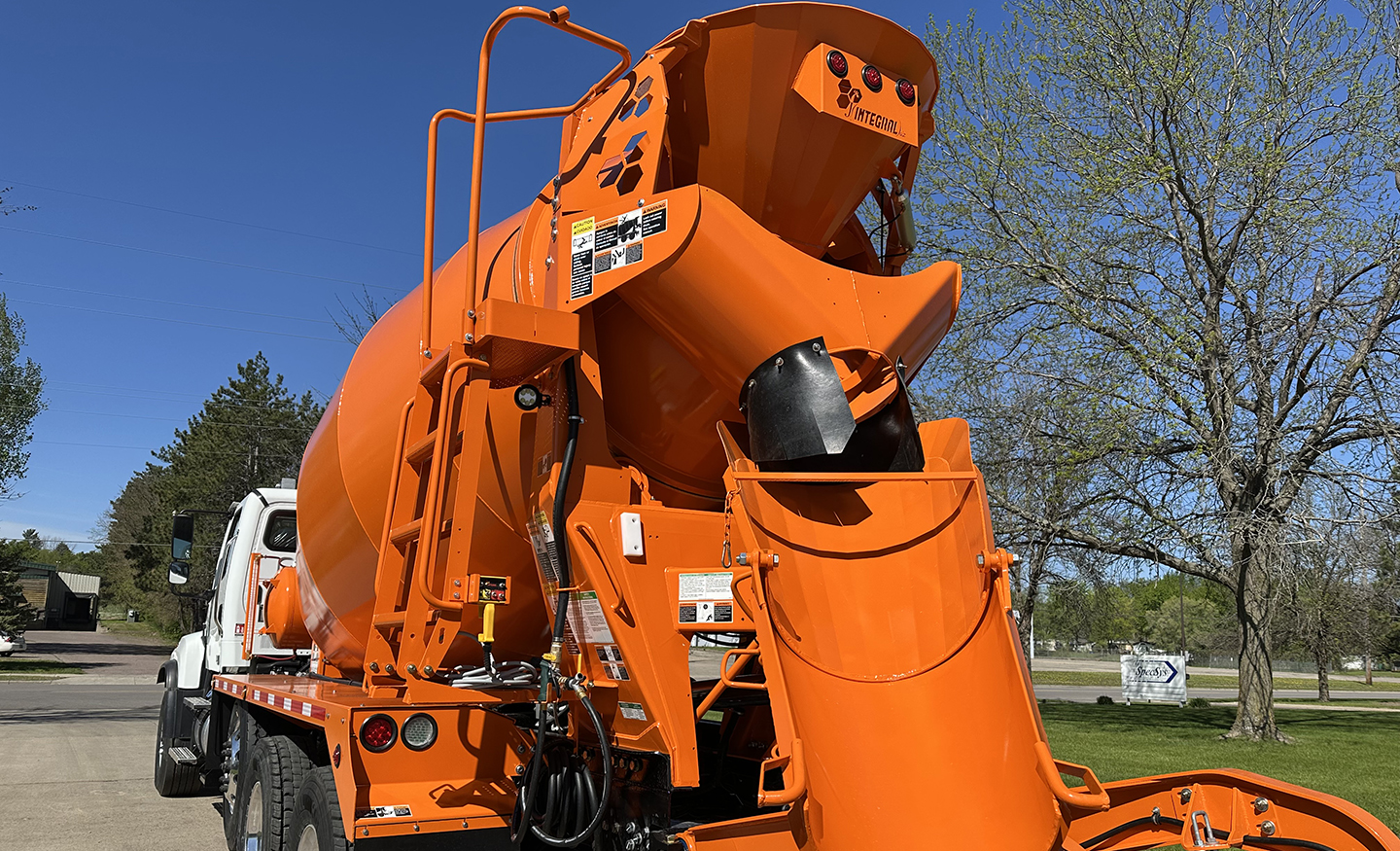

The rear of Carr Brothers' white and orange INTEGRALdx concrete redi-mix truck, with the discharge hopper located straight ahead.

Rapid Discharge

With a paving drum utilizing a 46" discharge and a 20% larger discharge hopper running at a 45° angle, we aim to unload and wash down at a rate our customers need for the most demanding jobs.

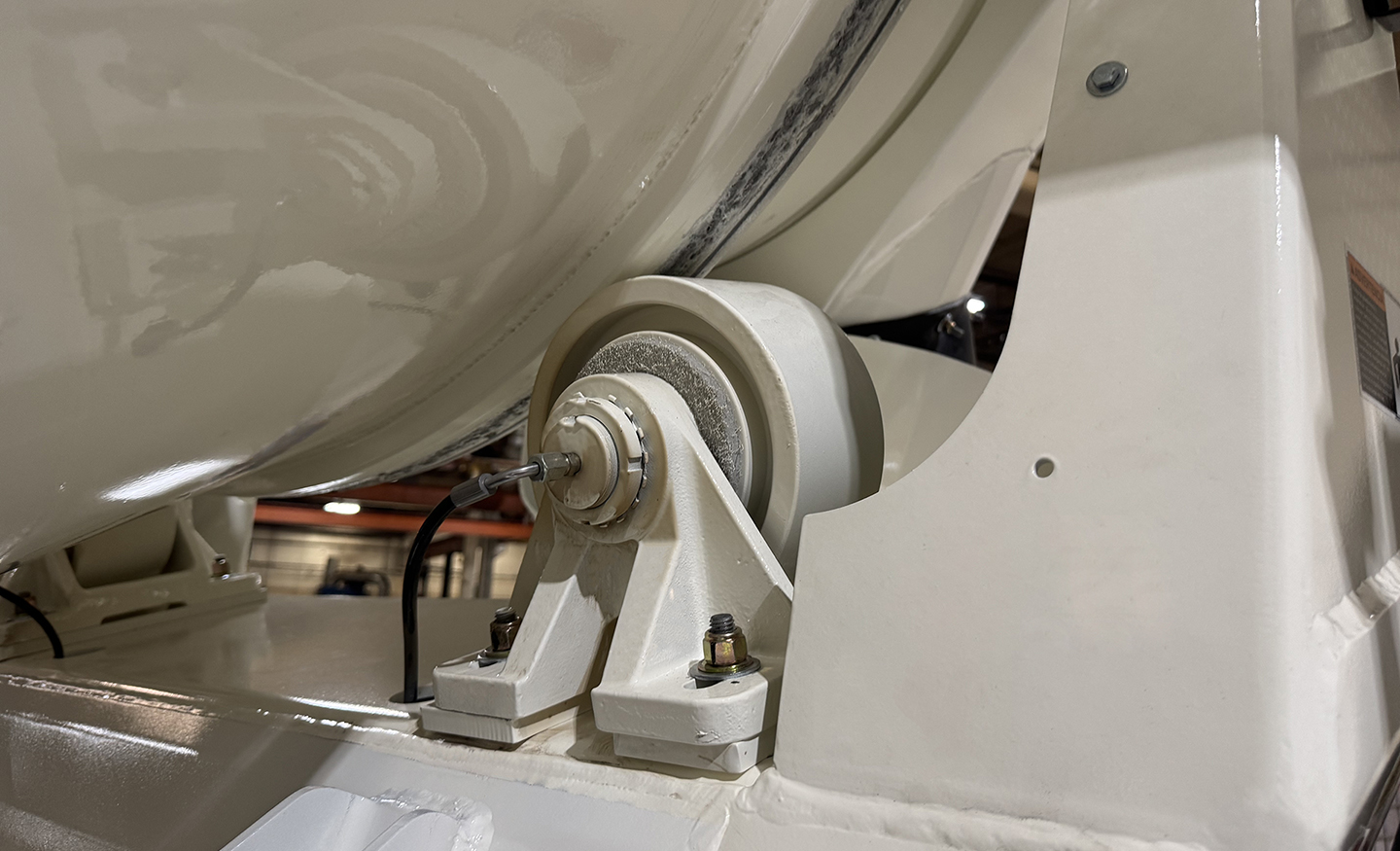

Drum Track and Rollers

Our drum track is made of forged, machined, and crowned steel for a seamless extended life. Furthermore, our 8" diameter rollers come with Timken roller bearings utilizing remote greasing.

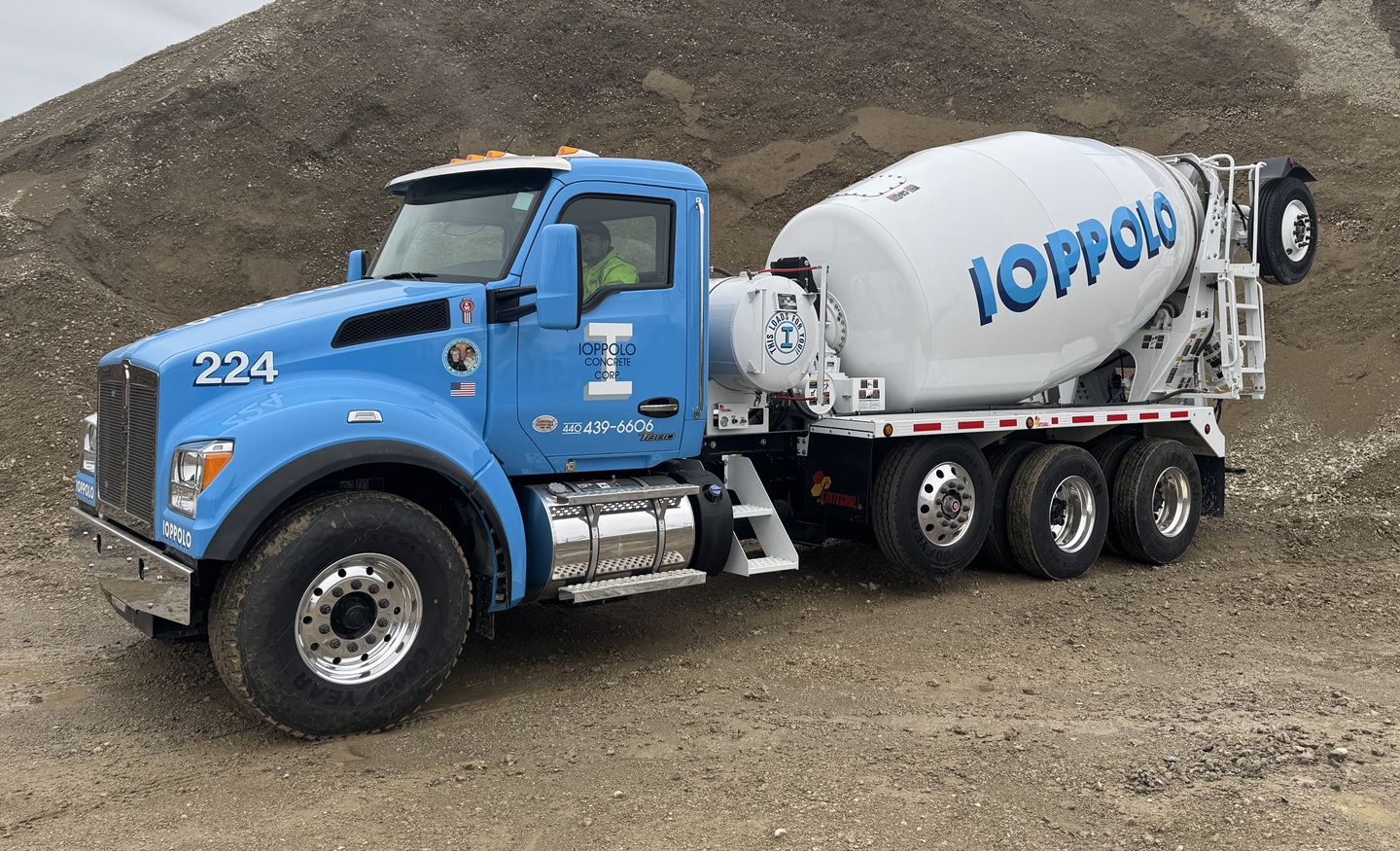

Custom Builds

At your request, we will customize builds to fit your requirements. Would you like attention grabbing paint, graphics, or decals? How about additional safety features? You can have both! Explore our options page to view what we have done for others.

Body Specifications

Features
Gearbox	ZF P7300 or ZF CML12
Drum Discharge Opening	46 in.
Roller Bearings	Timken® Greasable Roller Bearing
Water Tank	125-200 gal.
Swing Chute	5 ft. 6 in.
Foldover	3 ft. 2 in.
Side Mount Chute	4 ft. (steel or aluminum)
Fins	3/16 in. or 1/4 in.
Charging Hopper	45 in. x 28.5 in
Hopper Throat	30 in.
Mixing Speed	6-18 RPM
Agitation Speed	1-6 RPM

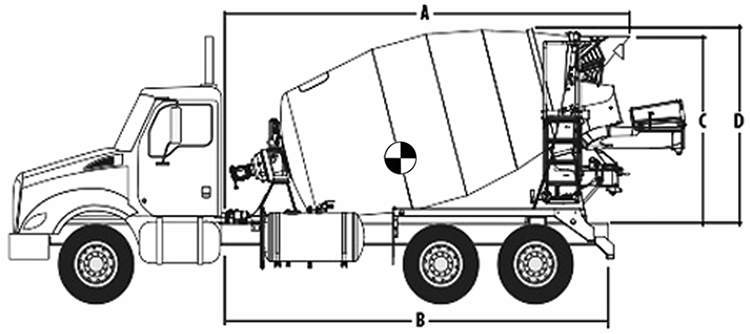

Mounting Options
Mixing Capacity	10 cu yd.	10.5 cu yd.	11 cu yd.	12 cu yd.
Agitator Capacity	13. cu yd.	14 cu yd.	14.7 cu yd.	16 cu yd.
Gross Drum Volume	450 cu ft.	471 cu ft.	496 cu ft.	544 cu ft.
A. Min. Length of Back of Cab to End of Charge Hopper	224 in.	230 in.	236 in.	250 in.
B. Min. Length of Platform	200 in.	206 in.	212 in.	226 in.
C. Charge Hopper Height	101.5 in.	101.5 in.	101.5 in.	101.5
D. Mixer Unit Height	105 in.	105 in.	105 in.	105 in.
